Figure 8

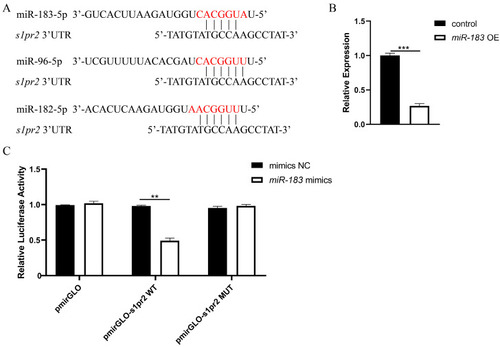

s1pr2 is a target gene of the miR-183 family. (A) Binding sites between the miR-183 family and s1pr2 based on the TargetScan database.The red character represents the seed sequence. (B) The mRNA expression levels of s1pr2 in wild-type embryos and miR-183 OE embryos were analyzed by RT-qPCR at 42 hpf. (C) A dual-luciferase reporter assay was used to verify the binding of miR-183 and s1pr2. ** p < 0.01, *** p < 0.001.
