Figure 1

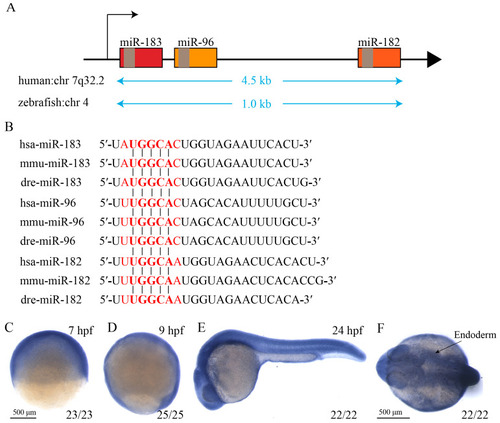

The miR-183 family is highly conserved. (A) Schematic diagram of the genomic localization of the miR-183 gene cluster on human chromosome 7 long arm 32.2 (7q32.2) and zebrafish chromosome 4. (B) Mature sequence alignment of miR-183, miR-96, and miR-182 sequences in humans (hsa-), mice (mmu-), and zebrafish (dre-). The seed sequence (nucleotides 2–8) is highlighted in red. (C,D) miR-183 was ubiquitously expressed at the 7 hpf to 9 hpf stage. (E,F) miR-183 was expressed in the endoderm at 24 hpf, lateral view (E), dorsal view (F). The numbers in the lower right corner indicate the number of embryos.
