Fig. 3

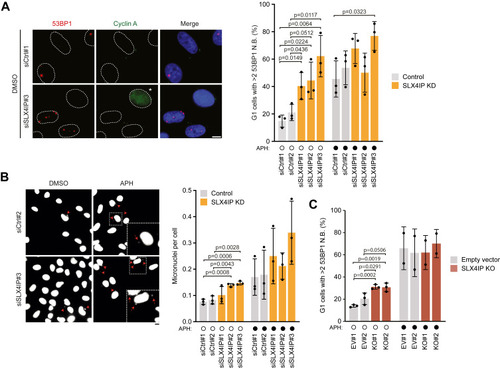

SLX4IP-deficient U2OS cells exhibit global chromosomal instability markers. A, G1 53BP1 N.Bs in siCtrl- and siSLX4IP-transfected U2OS cells (mean ± SD; n = 3 biological replicates; >2000 cells analyzed per condition). Cyclin A-positive cell marked by an asterisk for reference. B, micronuclei (MN) in siCtrl- and siSLX4IP-transfected U2OS cells (mean ± SD; n = 3 biological replicates; >1000 cells analyzed per condition). C, G1 53BP1 N.Bs in U2OS SLX4IP KO cells and EV cells (mean ± SD; n = 3 biological replicates; >1500 cells analyzed per condition). Significance was assessed by Student’s unpaired t-tests. Scale bars: 10 μM.
