Fig. 3

ID: ZDB-IMAGE-250730-77
Publication: Ingham et al., 2025 - Loss of SLX4IP leads to Common Fragile Sites instability and compromises DNA interstrand crosslink repair in vivo
All Figures: Figures for Ingham et al., 2025


Figure Caption

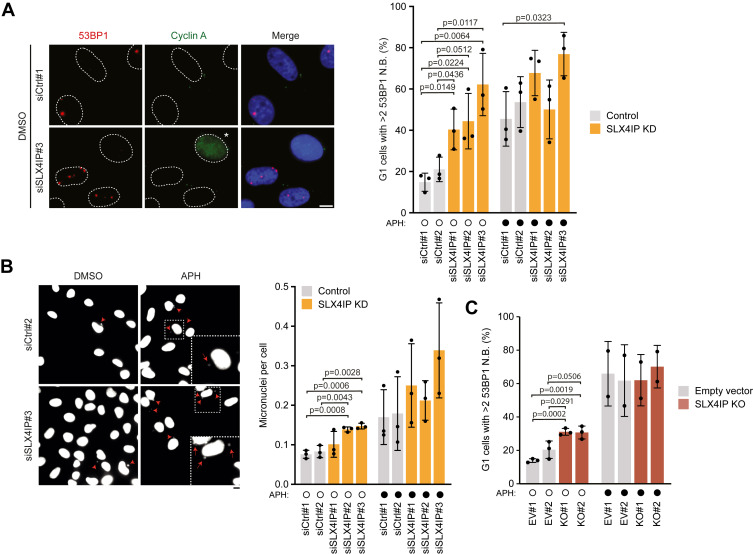

Fig. 3 SLX4IP-deficient U2OS cells exhibit global chromosomal instability markers. A, G1 53BP1 N.Bs in siCtrl- and siSLX4IP-transfected U2OS cells (mean ± SD; n = 3 biological replicates; >2000 cells analyzed per condition). Cyclin A-positive cell marked by an asterisk for reference. B, micronuclei (MN) in siCtrl- and siSLX4IP-transfected U2OS cells (mean ± SD; n = 3 biological replicates; >1000 cells analyzed per condition). C, G1 53BP1 N.Bs in U2OS SLX4IP KO cells and EV cells (mean ± SD; n = 3 biological replicates; >1500 cells analyzed per condition). Significance was assessed by Student’s unpaired t-tests. Scale bars: 10 μM.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J. Biol. Chem.
