Fig. S3

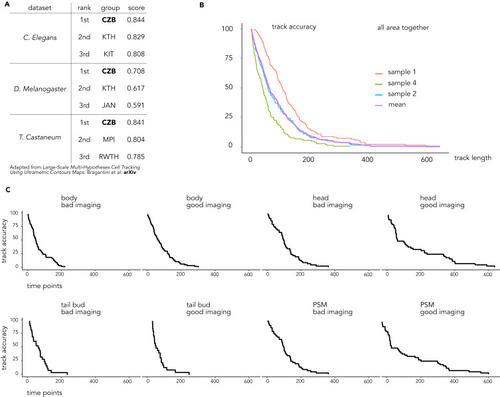

Ultrack is the top-performing algorithm for tracking embryonic development, related to Figure 4 (A) Table summarizing the performance of our tracking solution at the Cell Tracking Challenge for the 3D movie of embryonic development. CZB, CZ Biohub, USA (this paper); KTH, Royal Institute of Technology, Sweden; KIT, Karlsruhe Institute of Technology, Germany; JAN, HHMI Janelia, USA; MPI, Max Planck Institute, Germany; RWTH, Aachen University, Germany. (B) Manual tracking performance of Ultrack reported as track accuracy for three independent samples and all the samples together. In total, we manually curated 427 tracks. (C) Manual tracking performance was reported for different embryonic areas. Overall, better imaging correlates with better tracking.
