FIGURE

Fig. 1

ID

ZDB-FIG-240627-70

Publication

Zanardini et al., 2024 - Arginine Vasotocin Directly Regulates Spermatogenesis in Adult Zebrafish (Danio rerio) Testes

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

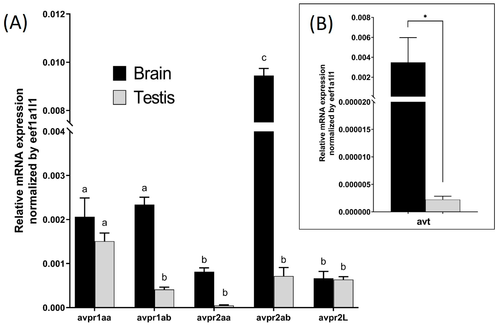

Relative transcript abundance of avt and Avp receptor subtypes in the testes and brain of zebrafish. Results show mRNA abundance of Avp receptor subtypes (avpr1aa, avpr1ab, avpr2aa, avpr2ab, avpr2l) (A) and vasotocin (avt) (B) in the adult zebrafish testis compared to the male brain. Columns represent basal expression levels from non-treated tissues (n = 5). Values were normalized with respect to eef1a1l1. Values with dissimilar superscripts are significantly different using a two-way ANOVA. Asterisk represents significant differences in transcript abundance of avt in the brain vs. testis, analyzed by the Mann?Whitney test.

Expression Data

Genes:	avp avpr1aa avpr1ab avpr2aa avpr2ab avpr2l
Fish:	WT
Anatomical Terms:	male organism brain testis
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
