FIGURE

Fig. 4

ID

ZDB-FIG-240618-4

Publication

Bondue et al., 2024 - MFSD12 depletion reduces cystine accumulation without improvement in proximal tubular function in experimental models for cystinosis

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

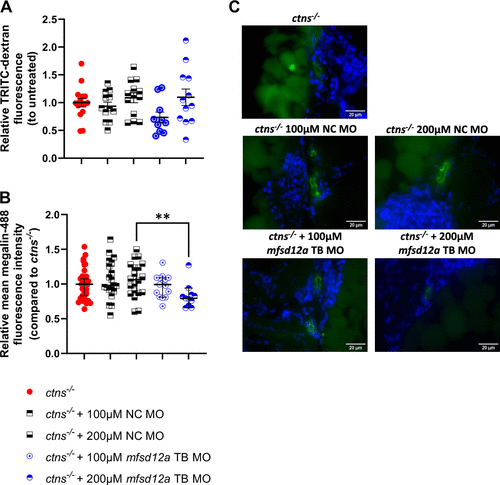

mfsd12a knockdown cannot ameliorate the proximal tubular dysfunction in ctns−/− zebrafish. A: morpholino-treated zebrafish were injected with 4.4 kDa TRITC-dextran in the circulation at 72 h post-injection. Fluorescence of the proximal tubular region was evaluated after 60 min in relation to the mean fluorescence in the untreated fish. Significance was evaluated with a one-way ANOVA and mean with SE is indicated. Each dot represents a single tubular region from three to four individual fish. **P < 0.01. B and C: 72 h post-injection, zebrafish sections were stained with Hoechst-33342 (blue) and for megalin (green). Megalin-488 fluorescence was quantified for each tubule (n = 7–15 fish/group), and significance was tested with a Kruskal–Wallis test. Scale bar = 20 µm. **P < 0.01.

Expression Data

Antibody:	Ab2-lrp2
Fish:	ctns^{sa14661/sa14661} ctns^{sa14661/sa14661} + MO1-mfsd12a
Knockdown Reagent:	MO1-mfsd12a
Anatomical Term:	pronephric proximal convoluted tubule
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ctns^{sa14661/sa14661} ctns^{sa14661/sa14661} + MO1-mfsd12a
Knockdown Reagent:	MO1-mfsd12a
Observed In:	pronephric proximal convoluted tubule pronephric proximal convoluted tubule renal absorption
Stage:	Protruding-mouth

Phenotype Detail
