FIGURE 3

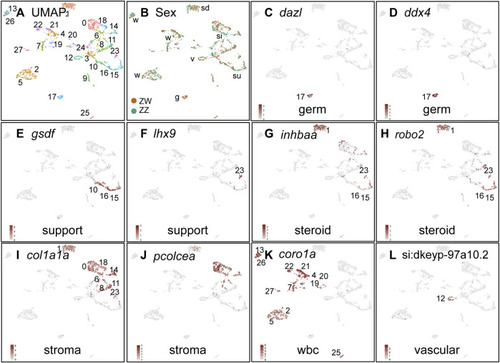

Cell-type marker genes for 19dpf ZW and ZZ gonads. (A) UMAP plot for 19dpf gonads combining ZW and ZZ cells. (B) Cells originating from ZW (red) or ZZ (blue) gonads, showing all clusters with mixtures of both sex genotypes. (C,D) Germ cells marked by dazl and ddx4 (vasa) were in cluster 19c17. (E,F) Support cells (granulosa and Sertoli) or their precursors marked by gsdf, and lhx9. (G,H) Steriogenic cells (theca, Leydig) or their precursors labeled with inhbaa and robo2 expression. (I,J) Stroma/interstitial cells marked by col1a1a and pcolcea. (K) White blood cells identified by coro1a expression. (L) Vasculature labeled with si:dkeyp-97a10.2. Abbreviations: g, germ cells; si, stroma/interstitial; sd, steroidogenic; su, support; v, vascular; w, white blood cells.
