Fig. 4

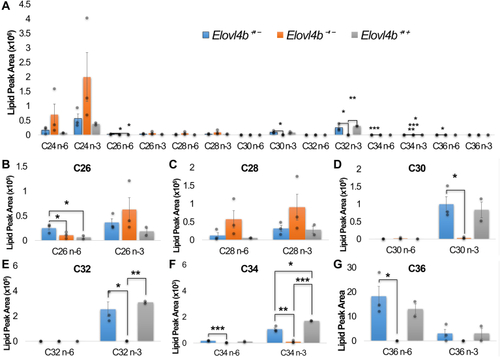

Lipid profile of C24-C36 N-3 and N-6 VLC-PUFAs in Elovl4b^+/− (blue), Elovl4b^−/− (orange), and wild-type Elovl4b^+/+ (gray) zebrafish eyes. A: C24-C36, (B) C26, (C) C28, (D) C30, (E) C32, (F) C34, and (G) C36 n-3 and n-6 PUFAs. VLC-PUFA analysis was done using gas chromatography and mass spectrometry. Elovl4b^+/−n = 3, Elovl4b^−/−n = 3, and Elovl4b^+/+n = 2. Lipid peak areas were normalized to the internal standard. Error bars represent the standard error of the mean. P values between groups were obtained using a one-tailed t-test with unequal variance. ∗P ≤ 0.05, ∗∗P ≤ 0.01, and ∗∗∗P ≤ 0.001.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	elovl4b^z210/z210 (AB)
Observed In:	eye polyunsaturated fatty acid eye very long-chain fatty acid biosynthetic process
Stage:	Adult
