Fig. 5

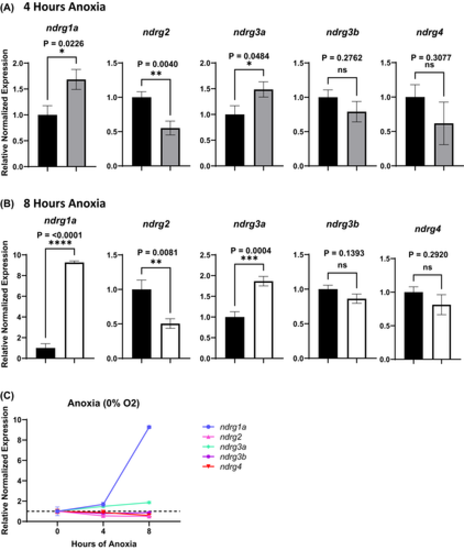

Changes in ndrg transcript levels in response to anoxia. Real-time qPCR analysis of 24 hpf zebrafish embryos exposed to 4 h (A, grey bars) or 8 h (B, white bars) of anoxia relative to normoxic (stage-matched) controls (A, B, black bars) normalized to ef1a. (C) Plotted graphical summary of qPCR results. The y-axis in the graphs represents the relative normalized expression of each gene. All fold changes were derived using the formula, 2^−(ΔΔCT), error bars represent standard error of the mean. Significance was obtained using the unpaired, two-tailed t-test with Welch’s Correction. *p < .05, **p < .01, ***p < .0005, ****p < .0001. Reactions were run in triplicate with 7–8 biological replicates (n = 7–8)

Expression Data

Genes:	ndrg1a ndrg2 ndrg3a ndrg3b ndrg4
Fish:	AB
Condition:	oxygen content
Anatomical Term:	whole organism
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB
Condition:	oxygen content
Observed In:	whole organism
Stage:	Prim-5

Phenotype Detail
