FIGURE

Figure 5

ID

ZDB-FIG-220816-60

Publication

Zeng et al., 2022 - Sexual dimorphic effects of igf1 deficiency on metabolism in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Figure 5

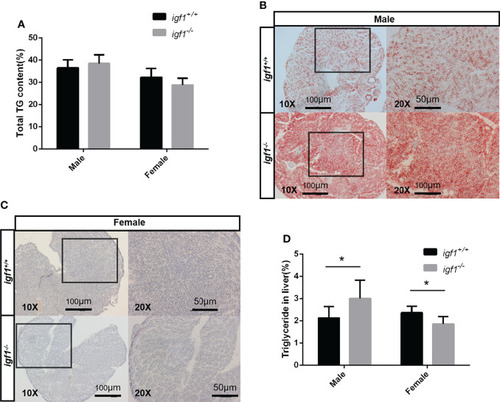

Hepatic steatosis observed in igf1-deficient male fish. (A) Body fat composition of igf1-deficient and wildtype control. (B, C) Frozen section and oil-red O staining of the hepatic tissue. Lower magnification images are shown at 10X, higher magnification of the indicated regions is shown at 20X. (D) Triglyceride content of the hepatic organ of igf1-deficient fish compared to controls (n = 6/group). *P < 0.05.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	igf1^{zf3739/zf3739}
Condition:	chemical treatment by injection: Insulin-like growth factor I
Observed In:	blood glucose female organism adipose tissue liver triglyceride male organism adipose tissue
Stage:	Adult

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Endocrinol (Lausanne)
