Liu et al., 2022 - Rod genesis driven by mafba in an nrl knockout zebrafish model with altered photoreceptor composition and progressive retinal degeneration. PLoS Genetics   18:e1009841 Full text @ PLoS Genet.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage Range: Days 7-13 to Adult
PHENOTYPE:
Fish:
Observed In:
Stage Range: Days 7-13 to Adult

Fig 8 Identification of the <italic toggle='yes'>mafba</italic> gene as a novel driving factor for the development of <italic toggle='yes'>nrl</italic>-independent rods.

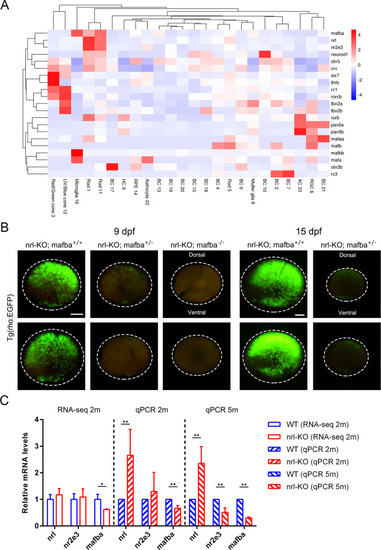

(A) Clustering analysis of the large MAF genes and the genes involved in photoreceptor development by using the expression data from scRNA-seq. The cell-type-specific expression pattern of mafba was highly similar to those of nrl and nr2e3. (B) The distribution of rods (labeled with EGFP) in the nrl-KO zebrafish carrying the WT, heterozygous, and homozygous mafba alleles at 9 dpf (left panel) and 15 dpf (right panel). Knocking out mafba further reduced the genesis of rods in the nrl-KO zebrafish. The dotted circles indicate the boundaries of the retinas. Scale bars: 100 μm. (C) The expression levels of nrl, nr2e3, and mafba in the nrl-KO retinas at 2 mpf and 5 mpf were measured via RNA-seq and qPCR. The data are shown as mean with SD (n = 3). *, p < 0.05; **, p < 0.01.

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
EGFP mafbahzu17/+; nrlhzu16/hzu16; kj2Tg standard conditions Days 7-13 retinal rod cell IFL
Days 14-20 retinal rod cell IFL
mafbahzu17/hzu17; nrlhzu16/hzu16; kj2Tg standard conditions Days 14-20 Not Detected retinal rod cell IFL
nrlhzu16/hzu16; kj2Tg standard conditions Days 7-13 retinal rod cell IFL
Days 14-20 retinal rod cell IFL
mafba WT standard conditions Days 45-89 eye RTPCR
Days 45-89 eye RNA-Seq
Adult eye RTPCR
nrlhzu16/hzu16 standard conditions Days 45-89 eye RTPCR
Days 45-89 eye RNA-Seq
Adult eye RTPCR
nr2e3 WT standard conditions Days 45-89 eye RTPCR
Days 45-89 eye RNA-Seq
Adult eye RTPCR
nrlhzu16/hzu16 standard conditions Days 45-89 eye RNA-Seq
Days 45-89 eye RTPCR
Adult eye RTPCR
nrl WT standard conditions Days 45-89 eye RNA-Seq
Days 45-89 eye RTPCR
Adult eye RTPCR
nrlhzu16/hzu16 standard conditions Days 45-89 eye RTPCR
Days 45-89 eye RNA-Seq
Adult eye RTPCR
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
mafbahzu17/+; nrlhzu16/hzu16; kj2Tg standard conditions Days 7-13 retinal rod cell decreased amount, abnormal
Days 7-13 retinal rod cell EGFP expression decreased distribution, abnormal
Days 14-20 retinal rod cell decreased amount, abnormal
Days 14-20 retinal rod cell EGFP expression decreased distribution, abnormal
mafbahzu17/hzu17; nrlhzu16/hzu16; kj2Tg standard conditions Days 7-13 retinal rod cell absence of anatomical entity, abnormal
Days 14-20 retinal rod cell EGFP expression absent, abnormal
nrlhzu16/hzu16 standard conditions Days 45-89 eye mafba expression decreased amount, abnormal
Days 45-89 eye mafba expression decreased amount, abnormal
Days 45-89 eye nrl expression increased amount, abnormal
Adult eye mafba expression decreased amount, abnormal
Adult eye nr2e3 expression decreased amount, abnormal
Adult eye nrl expression increased amount, abnormal
nrlhzu16/hzu16; kj2Tg standard conditions Days 7-13 retinal rod cell decreased amount, abnormal
Days 7-13 retinal rod cell EGFP expression decreased distribution, abnormal
Days 14-20 retinal rod cell decreased amount, abnormal
Days 14-20 retinal rod cell EGFP expression decreased distribution, abnormal
