Fig. 5

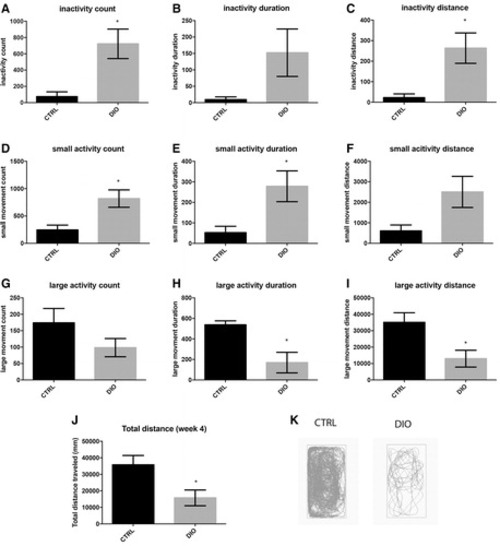

DIO increases the occurrence of inactivity in zebrafish. (A–I) Graphs showing the number of inactivity, small and large activity events (left column); the duration of inactivity, small and large activity states (middle column) and the distance traveled in inactivity, small and large activity states (locomotion <4 mm/s) in DIO fish compared with controls. (J) Graph showing that the total distance traveled during 10 min is significantly reduced in DIO compared with CTRL fish. (K) Zebrafish path tracking in CTRL and DIO fish. n = 4 number of fish. Student's t-test: *p < 0.05. Error bar: SEM.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Condition:	increased food availability
Observed In:	adult locomotory behavior whole organism
Stage:	Adult

Phenotype Detail
