Figure 8

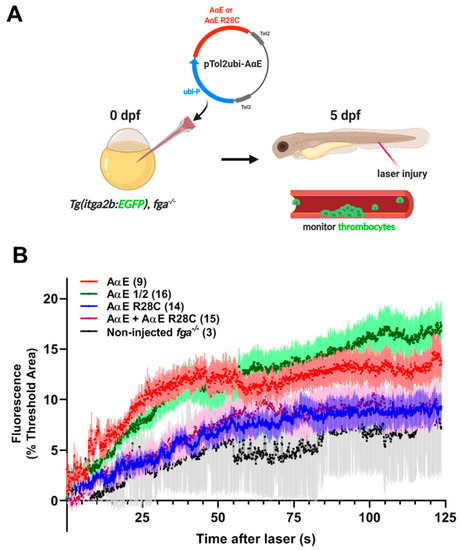

Fluorescent thrombocyte binding and aggregation after PCV laser injury in fga^?/? larvae with transgenic A?E or A?E R28C expression: a model of dysfibrinogenemia. (A) A scheme representing the experimental setup. Early Tg(itga2b:EGFP), fga^?/? embryos were microinjected with Tol2 transgenesis plasmids for expression of fibrinogen A?E or A?E R28C, A?E + A?E R28C or a half quantity of A?E (A?E ½). Tol2 transposase mRNA was also present in injection mixes (not shown). (B) Fluorescent thrombocyte binding and adhesion at 5 dpf were monitored for each experimental group over time after PCV laser injury. Each line represents the mean fluorescence (+/?SEM). The number of larvae per group is shown in brackets.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	fga^ug701/ug701
Condition:	light damage: posterior caudal vein
Observed In:	posterior caudal vein blood coagulation, fibrin clot formation posterior caudal vein platelet aggregation
Stage:	Day 5

Phenotype Detail
