Figure 2

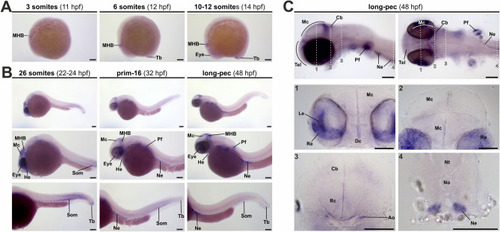

alpl expression during zebrafish embryogenesis. (A) and (B) Spatio-temporal expression pattern of alpl in zebrafish embryos at early segmentation (3–12-somites, A) until long-pec stages (48 hpf, B). (C) Detail images of head regions and of sections stained via ISH for alpl at long-pec stadium. Dashed white lines indicate level of sections shown at higher magnifications (1–4). Scale bar: 100 µm. Ao, dorsal aortic root; Cb, cerebellum; Dc, diencephalon; He, heart tube/heart; Le, lens; Mc, mesencephalon; MHB, midbrain-hindbrain boundary; Ne, nephros; No, notochord; Nt, neural tube; Pf, pectoral fin; Rc, rhombencephalon; Re, retina; Som, somites; Tb, tail bud.
