FIGURE

Figure 3

ID

ZDB-FIG-200812-8

Publication

Ohlebusch et al., 2020 - Investigation of alpl expression and Tnap-activity in zebrafish implies conserved functions during skeletal and neuronal development

Other Figures

All Figure Page

Back to All Figure Page

Figure 3

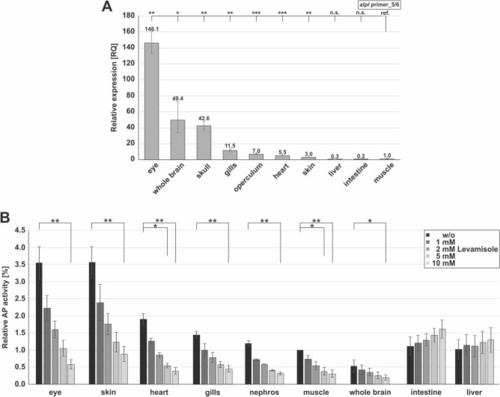

Expression pattern of alpl and activity of Tnap in adult zebrafish tissues. (A) alpl expression in different organs of adult zebrafish at the mRNA level determined with qPCR targeting exon 5/6. RQ: relative quotient (here calculated in comparison to the expression level of muscle samples). Statistics were calculated using two-sided student t-test, paired; ***p ≤ 0.001, **p < 0.01, *p < 0.05, n.s., not significant; ref, reference. (B) Enzymatic AP-activity in different organs of adult zebrafish measured with a CSPD-assay after treatment with different concentrations of the specific inhibitor levamisole. **p < 0.01, *p < 0.05. Normalization was performed using values for non-treated muscle samples. n = 3, technical replicates.

Expression Data

Gene:	alpl
Fish:	AB
Anatomical Terms:	brain cranium eye gill heart integument opercular flap
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
