FIGURE

Fig. S6

ID

ZDB-FIG-190722-19

Publication

Zhao et al., 2019 - Sas10 controls ribosome biogenesis by stabilizing Mpp10 and delivering the Mpp10-Imp3-Imp4 complex to nucleolus

Other Figures

All Figure Page

Back to All Figure Page

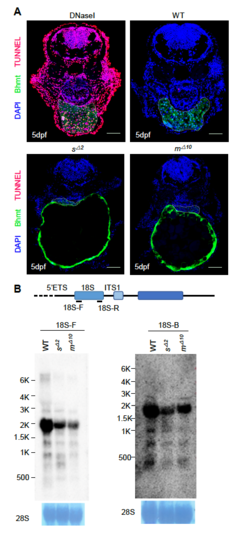

Fig. S6

(A) sas10Δ2 and mpp10Δ10 mutant embryos did not show abnormal apoptotic activities. TUNEL assay was performed on cryosections of WT, sas10Δ2 and mpp10Δ10 embryos at 5dpf. The liver area was defined by immunostaining of Bhmt (green). Compared to the WT embryos, no abnormal apoptotic activities were observed in sas10Δ2 and mpp10Δ10 mutant embryos. DNaseI treated embryos were used as the positive control for apoptotic cells (red). At least 16 cryosections from three embryos were examined. Bar: 50μm. (B) Northern blot analysis of rRNA precursors using the 18SF (left panel) and 18S-B (right panel) probes in 5dpf-old WT, sas10Δ2 (sΔ2) and mpp10Δ10 (mΔ10) embryos. 28S: loading control.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
