Fig. 5

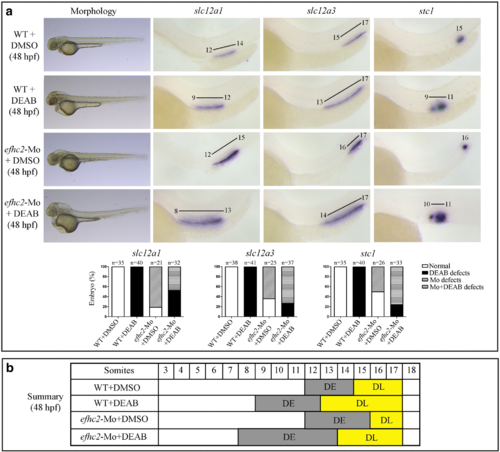

Effect of blocking RA synthesis by DEAB in efhc2-Mo morphants during pronephros segmentation. a Wild-type embryos or efhc2-Mo morphants were treated with DEAB (1 × 10⁻⁵ M). Morphological changes caused by DEAB treatment in wild-type and efhc2 morphants. efhc2-Mo morphants treated with DEAB show expansion of expression domain of DE marker slc12a1 and slight reduction of DL and CS markers slc12a3 and stc1 as compared with wild-type embryos treated with DEAB. b Summary of the effects of DEAB on WT and efhc2-Mo morphants at 48 hpf

Expression Data

Genes:	slc12a1 slc12a3 stc1
Fish:	WT WT + MO1-efhc2
Condition:	chemical treatment by environment: 3-allyl-2-[2-(diethylamino)ethoxy]benzaldehyde
Knockdown Reagent:	MO1-efhc2
Anatomical Terms:	corpuscles of Stannius pronephric distal early tubule pronephric distal late tubule
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT WT + MO1-efhc2
Condition:	chemical treatment by environment: 3-allyl-2-[2-(diethylamino)ethoxy]benzaldehyde
Knockdown Reagent:	MO1-efhc2
Observed In:	corpuscles of Stannius pronephric distal early tubule pronephric distal late tubule
Stage:	Long-pec

Phenotype Detail
