Fig. S6

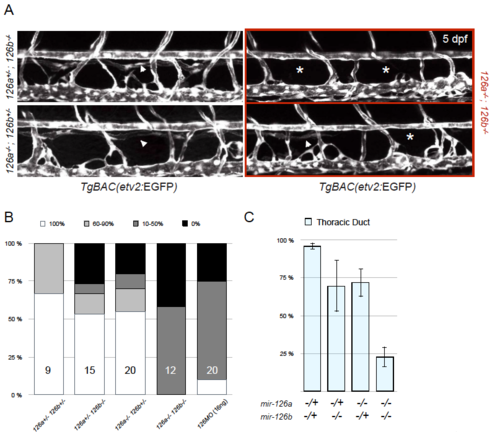

Penetrance of the thoracic duct phenotype in mir-126a and mir-126b mutants. (A) Confocal images of TD formation in mir-126a^-/-; mir-126b^+/-, mir-126a^+/-; mir-126b^-/-, and mir-126a-/-; mir-126b-/- larvae at 5 dpf. (B) Larvae were put into 4 categories according to TD formation (100%, 60–90%, 10–50%, and 0%). Double heterozygous larvae (mir-126a^+/-; mir-126b^+/-) show minimal TD defects. As more mir-126 alleles are “lost”, the penetrance of the phenotype increases. mir-126 morphants (16 ng) exhibit a similar penetrance as mir-126 mutants do. n, number of larvae for this particular experiment are indicated in the bars. (C) Plotting the average TD formation per genotype group shows that the phenotype is strong in the mir-126 population. Error bars are showing SEM. Graph shows data from one representative experiment. Analyses were done> 3 times and were consistent across all.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ci1Tg + MO1-mir126 mir126a^bns2/+; mir126b^bns3/+; ci1Tg mir126a^bns2/+; mir126b^bns3/bns3; ci1Tg mir126a^bns2/bns2; mir126b^bns3/+; ci1Tg mir126a^bns2/bns2; mir126b^bns3/bns3; ci1Tg
Knockdown Reagent:	MO1-mir126
Observed In:	thoracic duct
Stage:	Day 5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 437(2), Kontarakis, Z., Rossi, A., Ramas, S., Dellinger, M.T., Stainier, D.Y.R., Mir-126 is a conserved modulator of lymphatic development, 120-130, Copyright (2018) with permission from Elsevier. Full text @ Dev. Biol.
