Fig. s3

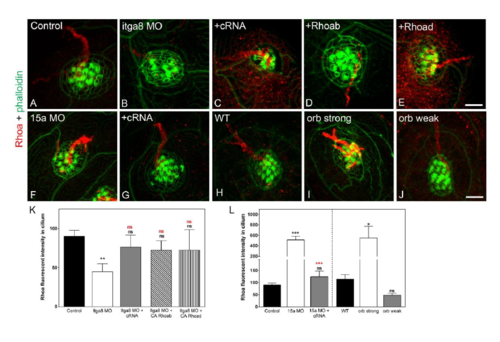

Ciliary localization analysis of Rhoa in Itga8/Pcdh15a MOs and mutants. A-J: Confocal images from 3dpf (A-G) and 5dpf (H-J) larvae showing Rhoa immunostaining (red) at the apical aspect of neuromast hair cells. Scale: A-G 5�m, H-J: 5.5�m. K-L: Quantification of Rhoa fluorescent intensity at the apical aspect of hair cells. At least 3 independent experiments were performed for each treatment and the total fluorescence intensity expressed as a percentage from control (mean�SEM). Oneway ANOVA followed by Dunnett?s multiple comparisons test or two-tailed Student?s t test ***p<0.001, **p<0.01, *p<0.05. ns=not significant.
