Schwarzer et al., 2017 - Dlx3b/4b is required for early-born but not later-forming sensory hair cells during zebrafish inner ear development. Biology Open   6(9):1270-1278 Full text @ Biol. Open
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage Range: 20-25 somites to Long-pec
PHENOTYPE:
Fish:
Observed In:
Stage Range: 20-25 somites to Long-pec

Fig. 4

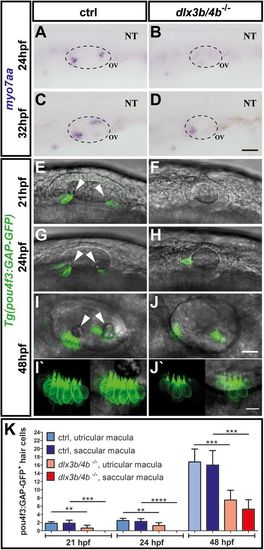

Delayed formation of sensory hair cells in dlx3b/4b-deficient embryos. (A-D) In comparison with control embryos at 24 hpf and 32 hpf, myo7aa expression is initially absent and subsequently restricted to the domain of the future utricular macula in dlx3b/4b mutants. (E-J) Expression of Tg(pou4f3:GAP-GFP) in control siblings and dlx3b/4b mutants at 21 hpf, 24 hpf and 48 hpf confirms delayed formation of sensory hair cells in dlx3b/4b-deficient embryos. Arrowheads indicate positions of the nascent otoliths in wild-type embryos. Note the initial onset of GFP in the prospective domain of the utricular macula and the subsequent expression in the future domain of the saccular macula in dlx3b/4b mutants. (I′,J′) Kinocilia formation appears normally in control siblings and dlx3b/4b mutants. Lateral views are shown with anterior to the left. NT, neural tube; OV, otic vesicle. Scale bars: 40 µm in D; 25 µm in J; 10 µm in J′. (K) Time course showing the mean number of pou4f3:GAP-GFP-positive hair cells in the domain of the future utricular and saccular domain of control (ctrl) and dlx3b/4b mutant embryos. dlx3b/4b-deficient embryos exhibit a significantly reduced number of sensory hair cells at 21 hpf and 24 hpf, and display significantly fewer hair cells at 48 hpf (**P<0,01; ***P<0,001; ****P<0,0001). Data are mean±s.e.m (n≥6 for each time point).

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
GFP Df(Chr12:dlx3b, dlx4b)tud70/tud70; s356tTg standard conditions 20-25 somites Not Detected otic placode IFL
Prim-5 otic vesicle IFL
Prim-5 utricle IFL
Long-pec hair cell anterior macula IFL
Long-pec hair cell posterior macula IFL
s356tTg standard conditions 20-25 somites otic placode IFL
Prim-5 immature hair cell anterior macula IFL
Prim-5 immature hair cell posterior macula IFL
Long-pec hair cell anterior macula IFL
Long-pec hair cell posterior macula IFL
myo7aa AB standard conditions Prim-5 hair cell anterior macula ISH
Prim-5 hair cell posterior macula ISH
Prim-15 hair cell anterior macula ISH
Prim-15 hair cell posterior macula ISH
Df(Chr12:dlx3b, dlx4b)tud70/tud70 (AB) standard conditions Prim-5 Not Detected hair cell anterior macula ISH
Prim-5 Not Detected hair cell posterior macula ISH
Prim-15 macula utricle ISH
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
Df(Chr12:dlx3b, dlx4b)tud70/tud70 (AB) standard conditions Prim-5 hair cell anterior macula myo7aa expression absent, abnormal
Prim-5 hair cell posterior macula myo7aa expression absent, abnormal
Df(Chr12:dlx3b, dlx4b)tud70/tud70; s356tTg standard conditions 20-25 somites otic placode GFP expression absent, abnormal
20-25 somites - Long-pec otic vesicle hair cell decreased amount, abnormal
Long-pec hair cell kinocilium morphology, normal
