Fig. 3

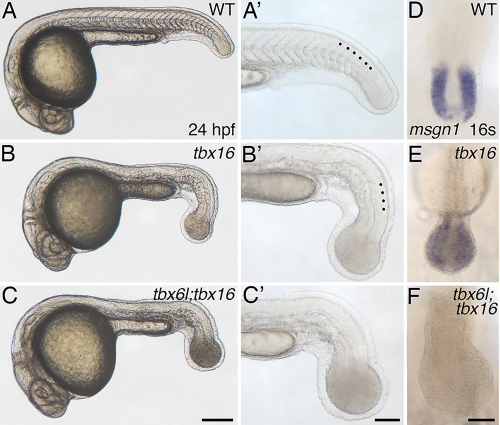

tbx6l; tbx16 double mutants have an enlarged tail bud and lack tail somites. A?C?: Brightfield images of 24-hpf live wild-type (A, A?), tbx16 (spt) mutant (B,B?), and tbx6l; tbx16 double-mutant (C,C?) embryos. tbx6l single-mutant embryos are not shown here as they are indistinguishable from wild-type embryos (see Fig. 1F,G). Black dots in the magnified views (A??C?) indicate morphologically visible tail somites. D?F: In situ hybridization for msgn1 at the 16-somite stage. Scale bar in A (for A?C) = 250 ?m. Scale bar in A? (for A??C?) = 100 ?m. Scale bar in F (for D?F) = 50 ?m.

Expression Data

Gene:	msgn1
Fish:	WT tbx16^b104/b104 tbx16l^z35/z35; tbx16^b104/b104
Anatomical Term:	paraxial mesoderm
Stage:	14-19 somites

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	tbx16^b104/b104 tbx16l^z35/z35; tbx16^b104/b104
Observed In:	paraxial mesoderm post-vent region somite tail bud trunk somite
Stage Range:	14-19 somites to Prim-5

Phenotype Detail
