Fig. S6

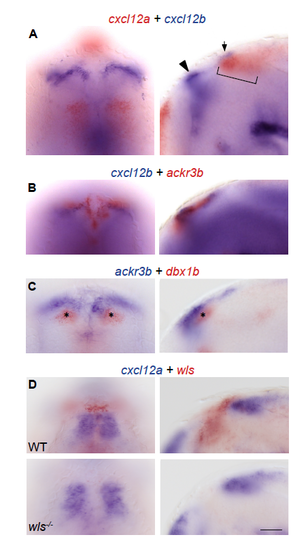

Diencephalic expression of genes in the Cxcr4-chemokine signaling pathway. (A) The cxcl12a gene is expressed ventral and caudal (bracket) to the developing habenulae. cxcl12b transcripts are found in high levels rostral (arrowhead) and lower levels caudal (arrow) to the dHb. (B) Transcripts for ackr3b are found anterior and medial to the rostral domain of cxcl12b expression and (C) the dbx1b⁺ progenitors (asterisks). (D) Expression of cxcl12a is not affected in wls mutants. Dorsal (left) and lateral (right) views. All embryos are 35 hpf. Scale bar is 50 μm.
