Fig. 2
- ID
- ZDB-FIG-130123-38
- Publication
- Clanton et al., 2013 - Fgf signaling governs cell fate in the zebrafish pineal complex
- Other Figures
- (all 15)
- All Figure Page
- Back to All Figure Page

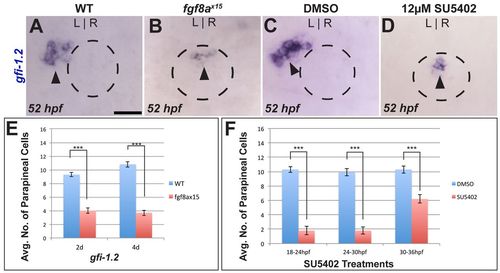

Loss of Fgf signaling results in fewer parapineal cells. (A,B) Dorsal views of WT and fgf8ax15 mutant zebrafish embryos labeled with gfi-1.2 (parapineal cells; black arrowheads). (C,D) Dorsal views showing expression of gfi-1.2 (black arrowheads) in WT larvae at 52 hpf that were treated between 24 and 30 hpf with either DMSO or SU5402. In A-D, dashed line encircles the pineal complex anlage. (E) fgf8ax15 mutants displayed a significant reduction in parapineal cell number compared with WT (***P=<0.0005 by t-test). (F) Reductions in parapineal cell numbers were observed in embryos treated with SU5402, particularly for 18-24 hpf and 24-30 hpf treatments (***P<0.0005 by t-test). Error bars represent s.e.m. Scale bar: 25 μm. |
Gene: | |
---|---|
Fish: | |
Conditions: | |
Anatomical Term: | |
Stage: | Long-pec |
Fish: | |
---|---|
Condition: | |
Observed In: | |
Stage Range: | 14-19 somites to Day 4 |
