Fig. 1

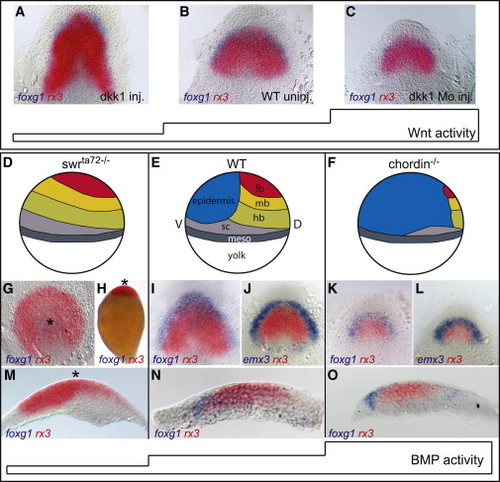

BMP, but Not Wnt, Subdivides the Anterior Forebrain Neural Fate into Eye and Telencephalon(A–C) Foxg1/rx3 in situ hybridization of dkk1 RNA (A) and dkk1 morpholino-injected embryos (C) compared to uninjected control (B) bud stage embryos (end of gastrulation), dorsal view, anterior to the top.(D–F) Schematic illustration of fate changes in response to BMP depletion in swr^ta72-/- (D) and elevated level of BMP signaling in chordin^/ (F), compared to wild-type (E) bud stage embryos, lateral view, dorsal to the right. fb, forebrain; mb, midbrain; hb, hindbrain; sc, spinal chord; meso, mesoderm.(G–O) Foxg1, rx3 double in situ hybridization in swr^ta72-/- (G, H, and M), WT (I, J, and N), and chordin^/ (K, L, and O). Asterisks in (G), (H), and (M) mark the center of the radialized axis. (G) Animal pole view, (H) lateral view, (I–L) dorsal view, anterior to the top, (M–O) sagittal section of the neural plate, anterior to the left.

Expression Data

Genes:	emx3 foxg1a rx3
Fish:	WT bmp2b^ta72a/ta72a chrd^tt250/tt250 WT + MO2-dkk1b
Knockdown Reagent:	MO2-dkk1b
Anatomical Terms:	anterior neural keel optic primordium
Stage:	Bud

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
