FIGURE

Fig. 4

ID
ZDB-FIG-120720-35
Publication
Huycke et al., 2012 - Hedgehog-dependent proliferation drives modular growth during morphogenesis of a dermal bone
Other Figures
All Figure Page
Back to All Figure Page
Fig. 4

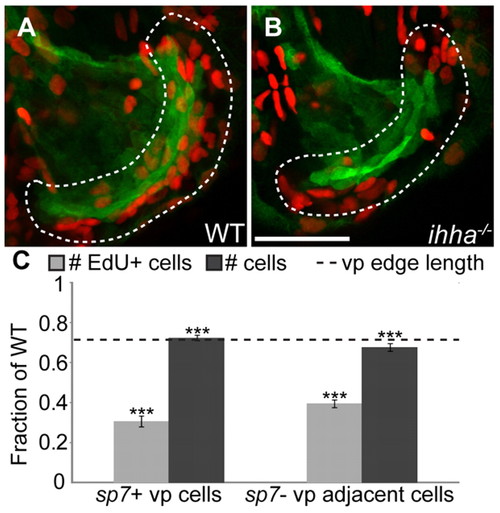

ihha controls cell proliferation. Quantitation of cell proliferation in ihha mutants and wild-type siblings. Images are lateral views with dorsal upwards and anterior towards the left. (A,B) Confocal projections of the Op at 5 dpf showing sp7:EGFP-expressing osteoblasts (green) and EdU-positive (EdU+) cells (red). (A) EdU+ cells are mostly found along the actively growing vp edge in wild type. (B) Fewer EdU+ cells are apparent along the vp edge in ihha mutants. Scale bar: 50 μm. (C) Quantitation of EdU+ cells along the vp edge as a fraction of wild-type levels shows that the amount of EdU+ cells is significantly decreased in ihha mutants. Cells included in the count, represented by dashes in A and B, are those within two cell diameters of the vp edge that express sp7:EGFP (sp7+ vp cells) or those that do not (sp7–, vp adjacent cells). The number of total cells stained with SYTO-59 was counted with the same parameters in a separate experiment and is decreased to a lesser extent than the number of EdU+ cells, but proportional to the decrease in vp edge length (shown as a broken line and based on Fig. 3). Data are presented as mean±s.e.m., ***P<0.001 by unpaired t-test, ne10 per genotype.

Expression Data
Gene:
Fish:
Anatomical Term:
Stage: Day 5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage: Day 5

Phenotype Detail
