Fig. S9

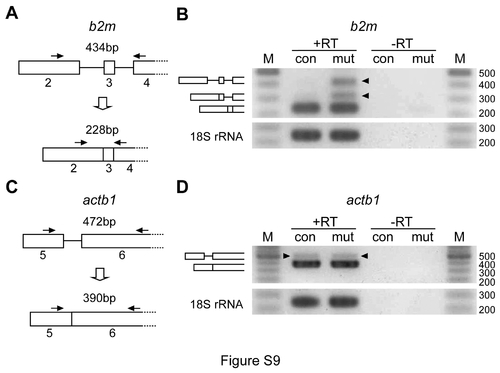

Pre-mRNA splicing of the housekeeping gene actb1, but not b2m, is unaffected in the Ddx46^{hi2137/hi2137} mutant. (A–D) Scheme of the b2m and actb1 pre-mRNA regions analyzed for splicing (boxes, exons; lines, introns; arrows, primers) (A, C). The splicing status of b2m and actb1 pre-mRNA was monitored using RT-PCR with the primers indicated in scheme A and C, respectively. Total RNA was isolated from the heads of Ddx46^{hi2137/hi2137} mutants (mut) and control (con) larvae. Unspliced b2m mRNAs were retained in the Ddx46^{hi2137/hi2137} mutants compared to the control larvae (arrowheads in B), whereas the splicing of actb1 was unaffected in the Ddx46^{hi2137/hi2137} mutants (arrowheads in D). Unspliced and spliced PCR products were verified by sequencing. +RT refers to the validation reaction itself, and -RT represents the respective control reaction without reverse transcriptase. 18S rRNA was used as a loading control. M, DNA size markers (sizes in bp). Control larvae were sibling WT or Ddx46^hi2137/+ larvae and had normal phenotypes.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ddx46^{hi2137Tg/hi2137Tg}
Observed In:	mRNA splicing, via spliceosome
Stage:	Protruding-mouth

Phenotype Detail
