Fig. 5

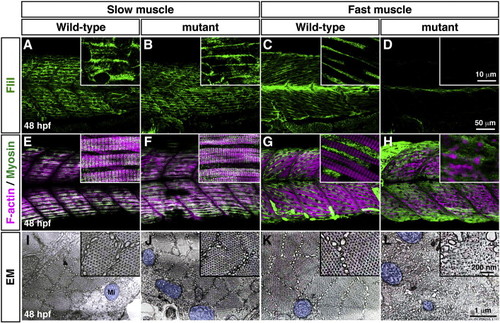

Actin–myosin fibers are disorganized in flii fast muscles at 48 hpf. (A–D) The expression of FliI protein was assayed with anti-FliI at 48 hpf. FliI protein was expressed in wild-type slow muscle (A), mutant slow muscle (B) and wild-type fast muscle (C) but not in mutant fast muscle (D). (E–H) Double labeling with phalloidin (F-actin) and anti-myosin (slow muscle: F59; fast muscle: MF20) at 48 hpf. Co-labeling of F-actin and slow myosin was seen in wild-type (E) and mutant (F). F-actin was organized in wild-type fast muscle (G) but not in mutant fast muscle (H). (I–L) Electron micrographs of cross-sections of muscle at 48 hpf. Actin and myosin bundles were organized in wild-type slow muscle (I), mutant slow muscle (J) and wild-type fast muscle (K) but not in mutant fast muscle (L). Mitochondria are shaded blue.
