FIGURE

Fig. 5

ID

ZDB-FIG-110531-5

Publication

Mapp et al., 2011 - Zebrafish Prickle1b mediates facial branchiomotor neuron migration via a farnesylation-dependent nuclear activity

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

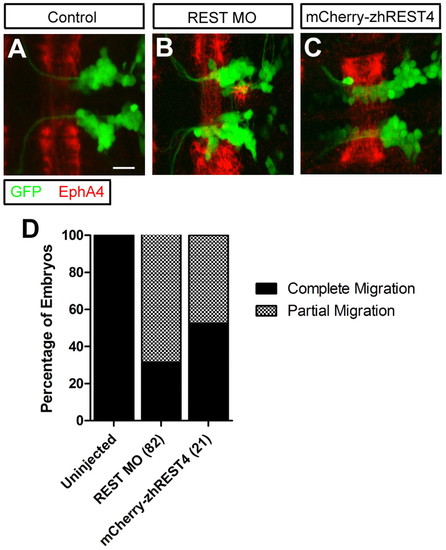

REST function is required for FBMN migration. (A-C) Maximum projection dorsal views of FBMNs (green) in 42 hpf Tg(islet1:GFP) zebrafish embryos, immunostained for EphA4 to mark r5 (red). FBMN migration is partially disrupted in REST morphants (B) and in mCherry-zhREST4-injected embryos (C), relative to controls (A). Scale bar: 20 μm. (D) The extent of FBMN migration was scored in embryos with disrupted REST function. The number of embryos scored is indicated in parentheses.

Expression Data

Genes:	epha4a GFP
Fish:	rw0Tg rw0Tg + MO1-rest
Knockdown Reagent:	MO1-rest
Anatomical Terms:	facial nerve motor nucleus motor neuron rhombomere 5
Stage:	High-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	rw0Tg + MO1-rest
Knockdown Reagent:	MO1-rest
Observed In:	facial nerve motor nucleus neuron migration
Stage:	High-pec

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
