Fig. 7

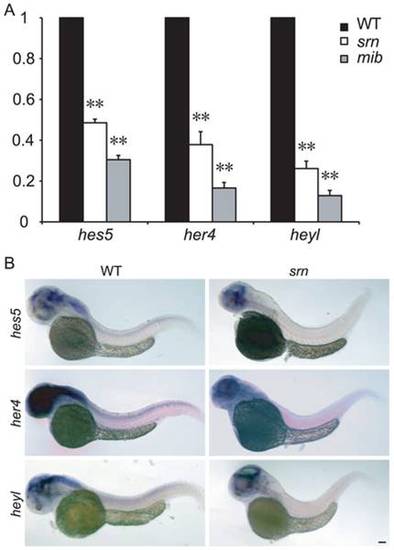

A. qRT-PCR assessment of fold change in hes5, her4 and heyl expression in WT, srn and mib mutant embryos at 48 hpf, normalized to β-actin1. hes5, her4 and heyl expression is dramatically reduced in srn, similar to those in mib, but to a lesser extent. (3?5 experiments, 20 embryos each, one-way ANOVA, Bonferroni′s Multiple Comparison Test, ** p<0.001, * p<0.5). B. hes5, her4 and heyl in situ hybridization at 48 hpf confirm reduced expression in the brain and spinal cord in srn mutants compared to WT (>30 embryos for each). Scale bar = 100 μm.

Expression Data

Genes:	her4.3 her15.1 heyl
Fish:	WT gmds^{p31erb/p31erb} mib1^hi904Tg
Anatomical Terms:	central nervous system whole organism
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
