Fig. 2

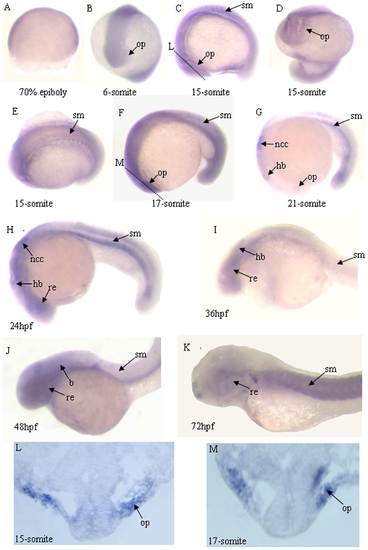

Expression patterns of the zebrafish atoh8 gene during morphogenesis.

Lateral view, anterior to the left (A,C,F–K). Top view (B,D). Dorsal view, anterior to the left (E). (A) 70% epiboly. (B) 6-somite. (C–E) 15-somite. (F) 17-somite. (G) 21-somite.(H,M,N) 24 hpf. (I) 36 hpf. (J) 48 hpf. (K) 72 hpf. (L–M)horizontal section of retina from 15-somite to 17-Somite stage embryos. Abbreviations: b, brain; hb, hind brain; lp, lens primordium;ncc,neuron crest cell; op, optic vesicle; re, retina; sm, somite.
