ZFIN ID: ZDB-FIG-090820-7
Seipold et al., 2009 - Non-SMC condensin I complex proteins control chromosome segregation and survival of proliferating cells in the zebrafish neural retina. BMC Developmental Biology   9:40 Full text @ BMC Dev. Biol.
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage Range: Shield to Day 5

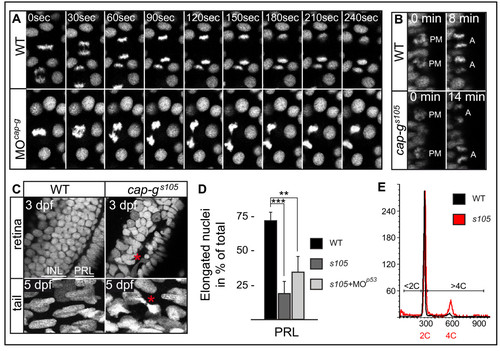

Fig. 4 Defective sister chromatid separation and aberrant nuclear sizes and shapes upon loss of Cap-G. (A) Selected images from a timelapse recording of mitotic divisions at gastrula stages analyzed in Tg [H2A::GFP] transgenic embryos. cap-g morphant embryos display defective sister chromatid separation and abnormal chromatid morphology during anaphase. (B) Selected images from a timelapse analysis of mitotic divisions within the ventricular zone of the neural tube at 32 hpf. Progression from prometaphase, when condensed chromosomes are visible, to anaphase is significantly delayed in cap-gs105 mutants. (C) Transverse vibratome sections through retinae counter-stained with propidium iodide reveal aberrant nuclear sizes and morphologies within cap-gs105 mutants at 3 dpf. The strict retinal layering into inner INL and PRL is not recognizable. Red asterisk indicates decondensed nucleus with chromatid bridge/non-disjunction event. Similarly, the non-neural tail region of cap-gs105 mutants contains cells with incomplete separation of chromatids (red asterisk). (D) In the wild-type retina, most nuclei in the photoreceptor layer have an elongated appearance. In cap-gs105 mutant or cap-gs105 mutant/p53 morphant retinae, most PRL nuclei fail to elongate. Data represent mean ± SD, n ≥ 115 for each retinal layer and genotype; **, p < 0.01; ***, p < 0.005. (E) Representative histograms from FACS analysis of propidium idodide stained nuclei suspensions. Whereas at 72 hpf most cells in the wild-type are diploid (2C; 1C = haploid genome equivalent), cap-gs105 mutants harbor an increased fraction of cells with a genomic content >2C, especially in the tetraploid range (4C).

Gene Expression DetailsNo data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
kca66Tg; kca6Tg + MO1-ncapg + MO4-tp53 standard conditions Shield - Bud gastrula cell chromosome morphology, abnormal
Shield - Bud mitotic sister chromatid segregation disrupted, abnormal
ncapgs105/s105(TL) standard conditions Protruding-mouth retina nucleus morphology, abnormal
Protruding-mouth retina nucleus variability of size, abnormal
Protruding-mouth whole organism ploidy, abnormal
Day 5 mitotic sister chromatid separation disrupted, abnormal
ncapgs105/s105; kca66Tg; kca6Tg standard conditions Prim-15 mitotic cell cycle disrupted, abnormal
