Fig. 8

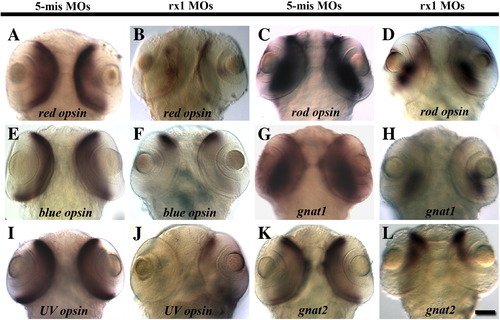

Temporally-selective rx1 depletion results in a reduction in the expression of rod and cone opsins and rod and cone transducins. Embryos were injected with the 5-mispair control MO (A, C, E, G, I, K) or an rx1-targeting MO cocktail (B, D, F, H, J, L) and were processed as whole mounts for in situ hybridization with cRNA probes corresponding to red cone opsin (A, B), rod opsin (C, D), blue cone opsin (E, F), rod transducin alpha subunit (gnat1; G, H), UV cone opsin (I, J), or cone transducin alpha subunit (gnat2; K, L). Scale bar = 50 μm.
