Fig. 4
- ID
- ZDB-FIG-080904-62
- Publication
- Liu et al., 2008 - Fli1 Acts at the Top of the Transcriptional Network Driving Blood and Endothelial Development
- Other Figures
- All Figure Page
- Back to All Figure Page

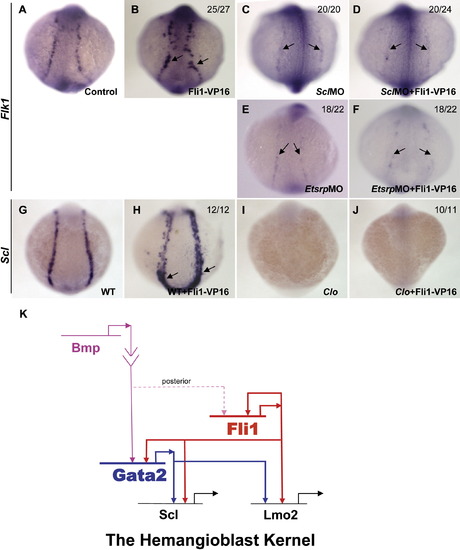

Fli1 May Act in Parallel with Cloche but Upstream of Scl and Etsrp (A?J) WISH on wild-type or Cloche mutant zebrafish embryos injected with combinations of Fli1-VP16 mRNA and/or Scl/Etsrp MOs. 10 s stage, dorsal view, head to top. (K) A genetic regulatory network linking Bmp to Fli1 at the top of the hemangioblast hierarchy, drawn according to Davidson et al. [29]. Solid lines, direct regulation; dashed lines, no evidence for direct or indirect. Evidence for links quoted in text, apart from Gata2 as a direct Bmp target [32]. |
Genes: | |
---|---|
Fish: | |
Knockdown Reagents: | |
Anatomical Term: | |
Stage: | 10-13 somites |
Fish: | |
---|---|
Knockdown Reagents: | |
Observed In: | |
Stage: | 10-13 somites |
