Fig. 5

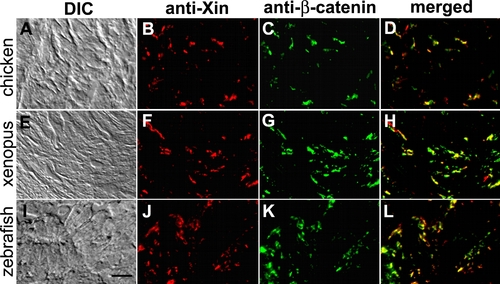

Co-localization of Xin proteins and β-catenin in chicken, frog and zebrafish hearts.
Double-label indirect immunofluorescence microscopy was performed on frozen sections of chicken (A–D), frog (E–H) and zebrafish (I–L) hearts with mouse monoclonal anti-β-catenin (C, G, K) and rabbit polyclonal U1013 anti-mXin (B, F, J) antibodies, and subsequently with a mixture of rhodamine-conjugated goat anti-rabbit IgG and fluorescein-conjugated goat anti-mouse IgG. Merged images (D, H, L) indicate co-localization of the two proteins. The differential interference-contrast (DIC) images correspond to the fluorescent images shown in respectively. Scale bar: 10 μm.

Expression Data

Gene:	ctnnb1
Antibody:	Ab1-ctnnb1
Fish:	WT
Anatomical Term:	heart intercalated disc
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
