ZFIN ID: ZDB-FIG-080702-5
Cau et al., 2008 - Notch resolves mixed neural identities in the zebrafish epiphysis. Development (Cambridge, England)   135(14):2391-2401 Full text @ Development
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Antibodies:
Fish:
Knockdown Reagents:
Anatomical Terms:
Stage: Long-pec

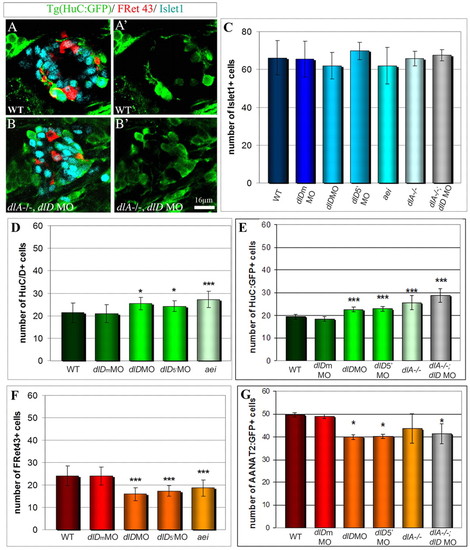

Fig. 5 Impaired photoreceptor/projection neurons ratio in embryos deficient for Delta genes. (A-B′) Confocal sections from wild-type (A-A′) and deltaA-/-, deltaD-morphant epiphysis (B-B′) showing GFP from Tg(HuC:GFP) (green), FRet43 (red) and Islet1 (purple) at 48 hours of development. (C-G)Average number of Islet1+ (C), HuC/D+ (D), Tg(HuC:GFP)+ (E), FRet43+ (F) and Tg(AANAT2:GFP)+ cells (G) in 48 hours embryos depleted for the function of deltaA and/or deltaD. Anterior is upwards. Scale bar: 16 μm. Error bars represent the standard deviation ***P<0.0005 using a t-test.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
EGFP dlahi781Tg/hi781Tg; knu3Tg + MO2-dld + MO4-dld standard conditions Long-pec epiphysis neuron IFL
knu3Tg standard conditions Long-pec epiphysis neuron IFL
isl1a Ab2-isl knu3Tg standard conditions Long-pec epiphysis neuron IHC
Ab2-isl mib1ta52b/ta52b; knu3Tg standard conditions Long-pec epiphysis neuron IHC
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
zpr-1 IHC dlahi781Tg/hi781Tg; knu3Tg + MO2-dld + MO4-dld standard conditions Long-pec epiphysis
IHC knu3Tg standard conditions Long-pec epiphysis
Phenotype Details No data available
