FIGURE

Fig. S1

ID

ZDB-FIG-080325-124

Publication

Serluca, 2008 - Development of the proepicardial organ in the zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. S1

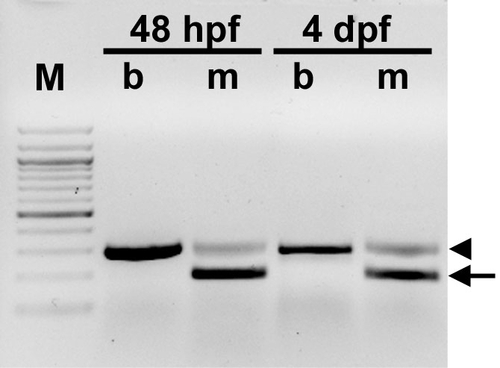

RT-PCR analysis of wt1MO embryos. RNA from buffer (b) injected and (m) wt1MO injected embryos was used as a template in a RT-PCR designed to amplify a portion of the wt1 messenger RNA at 48 hpf or 4 dpf. Most of the mRNA amplified in the morpholino injected embryos is aberrantly spliced yielding a smaller PCR product (arrow) than in wild type (arrowhead). M: 100 base pair ladder. Some wild type message is still present in the morpholino-injected embryos.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO4-wt1a
Knockdown Reagent:	MO4-wt1a
Observed In:	atrium cardiac ventricle coelom heart pericardium
Stage:	Day 4

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 315(1), Serluca, F.C., Development of the proepicardial organ in the zebrafish, 18-27, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
