Fig. 5

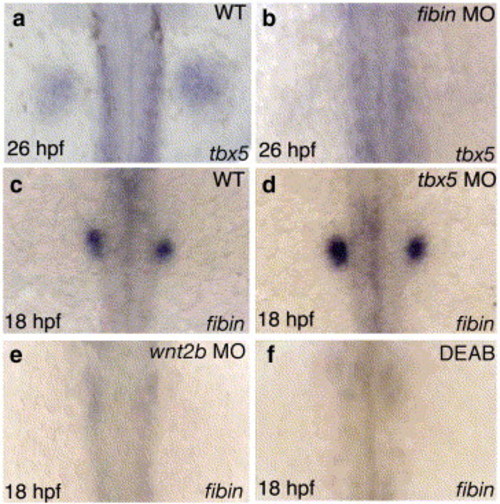

Expression of tbx5 and fibin in presumptive pectoral fin bud regions of gene knockdown or DEAB-treated embryos. The expression of tbx5 was examined in wild-type (a) and fibin-knockdown (b) presumptive pectoral fin bud regions at 26 hpf by whole mount in situ hybridization. The expression of fibin was examined in wild-type (c), tbx5-knockdown (d), wnt2b-knockdown (e) and DEAB-treated (f) presumptive pectoral fin bud regions at 18 hpf.

Expression Data
Genes:
Fish:
Condition:
Knockdown Reagents:
Anatomical Terms:
Stage Range: 14-19 somites to Prim-5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage Range: 14-19 somites to Prim-5

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 303(2), Wakahara, T., Kusu, N., Yamauchi, H., Kimura, I., Konishi, M., Miyake, A., and Itoh, N., fibin, a novel secreted lateral plate mesoderm signal, is essential for pectoral fin bud initiation in zebrafish, 527-535, Copyright (2007) with permission from Elsevier. Full text @ Dev. Biol.
