Fig. 7

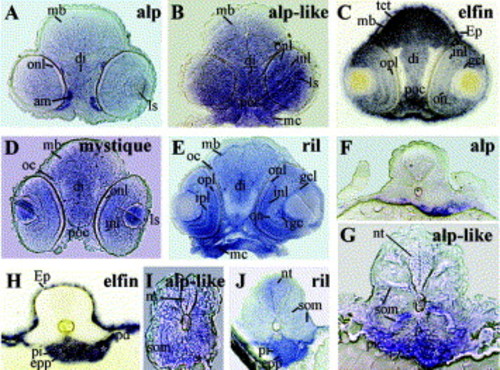

Detection of specific expression domains for alp family genes in sections of 2 dpf embryos. Shown are whole mount in situ hybridization pictures of 2 dpf embryos probed for the indicated genes. Abbreviations used are: anterior mandibularis (am), (di): diencephalon, exocrine pancreas progenitor (epp), ganglion cell layer (gcl), inner nuclear layer (inl), inner plexus layer (ipl), mandibular cartiledge (mc), midbrain (mb), neural tube (nt), optic nerve (on), outer nuclear layer (onl), outer plexus layer (opl), pancreatic islet (pi), posterior chiasm (poc), pronephric duct (pd), retinal ganglion cells (rgc) and tectum (tct). (A–E) show transversal brain sections and (F and G) transversal sections through more posterior regions of the embryo. Staining in the gut is marked with an asterisk in F and G.

Expression Data

Genes:	pdlim1 pdlim2 pdlim3a pdlim3b pdlim4
Fish:	WT
Anatomical Terms:	cranial nerve II diencephalon endocrine pancreas epidermis exocrine pancreas gut lens mandibular arch skeleton midbrain optic chiasm optic tectum retinal ganglion cell layer retinal inner nuclear layer retinal outer nuclear layer somite
Stage:	Long-pec
