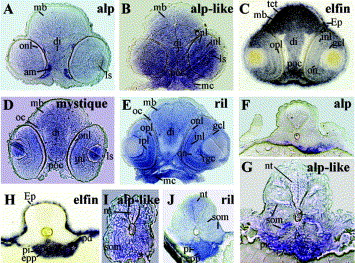

Fig. 7 Detection of specific expression domains for alp family genes in sections of 2 dpf embryos. Shown are whole mount in situ hybridization pictures of 2 dpf embryos probed for the indicated genes. Abbreviations used are: anterior mandibularis (am), (di): diencephalon, exocrine pancreas progenitor (epp), ganglion cell layer (gcl), inner nuclear layer (inl), inner plexus layer (ipl), mandibular cartiledge (mc), midbrain (mb), neural tube (nt), optic nerve (on), outer nuclear layer (onl), outer plexus layer (opl), pancreatic islet (pi), posterior chiasm (poc), pronephric duct (pd), retinal ganglion cells (rgc) and tectum (tct). (A–E) show transversal brain sections and (F and G) transversal sections through more posterior regions of the embryo. Staining in the gut is marked with an asterisk in F and G.
