ZFIN ID: ZDB-FIG-050208-1
Dooley et al., 2005 - Zebrafish scl functions independently in hematopoietic and endothelial development. Developmental Biology   277(2):522-536 Full text @ Dev. Biol.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Knockdown Reagents:
Anatomical Term:
Stage Range: 10-13 somites to 20-25 somites

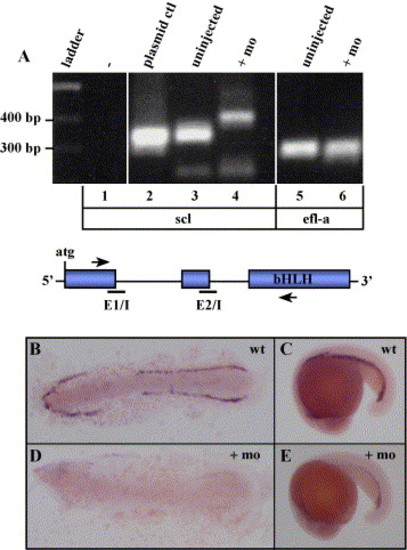

Fig. 1 Efficient knockdown of scl by morpholino injection. (A) Reverse-transcriptase (RT)-PCR analysis of uninjected and scl morphant embryos. An aberrant PCR product was observed in the scl morphant (+mo, lane 4) compared to the 325-bp product observed in uninjected control embryos (uninjected, lane 3). An approximate 325 bp product was observed with a pCMV-scl plasmid control (plasmid ctl, lane 2), and no PCR product was observed in the absence of template (-, lane 1). The relative locations of E1/I and E2/I are indicated as black bars in the schematic below, and the relative locations of primers used for RT-PCR are indicated as arrows. As a control, primers designed to amplify ef1-alpha yielded the same sized product from uninjected or scl morphant embryos (lanes 5, 6). B–E) Whole mount RNA in situ hybridization (ISH) for scl in uninjected (B, C) or scl morphant embryos (D, E). In B and D, the yolk was removed and the 10-somite embryos were flat mounted on glass slides for imaging. In C and E, lateral views of the whole embryo at the 20-somite stage are shown. All embryos are oriented with anterior to the left.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
tal1 WT standard conditions 10-13 somites unspecified ISH
20-25 somites unspecified ISH
WT + MO1-tal1 + MO2-tal1 standard conditions 10-13 somites unspecified ISH
20-25 somites unspecified ISH
Antibody Labeling Details No data available
Phenotype Details No data available
Acknowledgments:
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 277(2), Dooley, K.A., Davidson, A.J., and Zon, L.I., Zebrafish scl functions independently in hematopoietic and endothelial development, 522-536, Copyright (2005) with permission from Elsevier. Full text @ Dev. Biol.
