Figures for Mawdsley et al., 2004
Figure Caption

Fig. 6

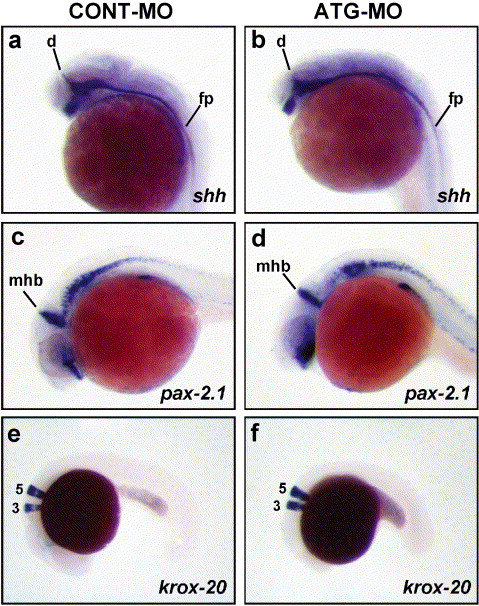

Neural progenitor populations are specified and positioned correctly in Neogenin morphants. (a) shh was expressed in the diencephalon (d) and floor plate (fp) within the developing brain and neural tube in control embryos (26 hpf). (b) The overall pattern of shh expression remained unaltered in the embryos injected with 3.7 ng ATG-MO, except for the dorsally directed peak of expression in the caudal diencephalon, which was reduced. (c) Expression of pax2.1 delineated the rostral domain of the midbrain-hindbrain boundary (mhb) in control embryos (26 hpf). (d) The pattern of pax2.1 expression was identical in the morphants indicating that mhb patterning was unaffected. (e) The expression of krox-20 in control embryos delineated rhombomeres 3 and 5 in the developing hindbrain (20 hpf). (f) The expression of krox-20 in the morphants was indistinguishable from control embryos. (a-f) Lateral views with rostral to the left and dorsal to the top.
