ZFIN Image: McKee et al., 2014, Fig. 1


Figure Caption

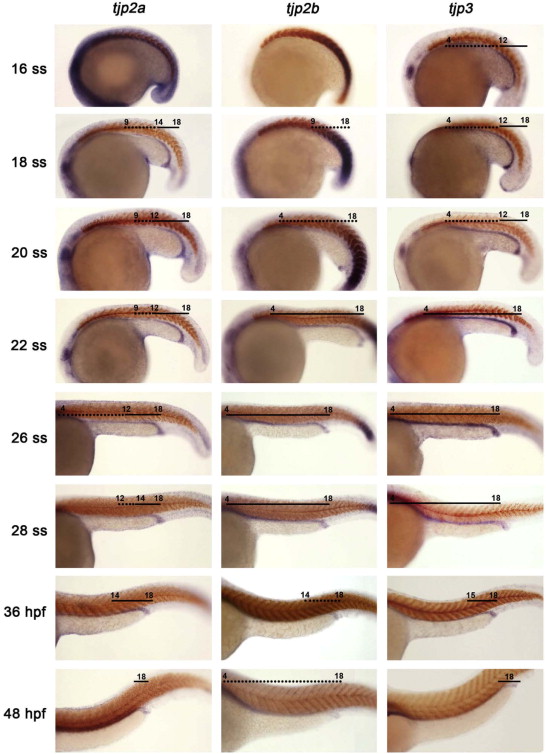

Fig. 1 Expression of tjp transcripts during nephrogenesis. Whole mount in situ hybridization analysis for tjp2a, tjp2b, and tjp3 (purple) and smyhc1 (red) at the 16–28 somite stage (ss), 36 and 48 hours post fertilization (hpf) in wild-type embryos. Embryos are shown in lateral views with anterior to the left. Black lines (strong expression) and dotted lines (faint expression) indicated transcript domains and comparative levels, and numbers correspond to the somite position of nephron cells. For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 16, McKee, R., Gerlach, G.F., Jou, J., Cheng, C.N., Wingert, R.A., Temporal and spatial expression of tight junction genes during zebrafish pronephros development, 104-113, Copyright (2014) with permission from Elsevier. Full text @ Gene Expr. Patterns
