Fig. 3

ID
ZDB-IMAGE-080715-36
Genes
Source
Figures for Dutta et al., 2008
Figure Caption

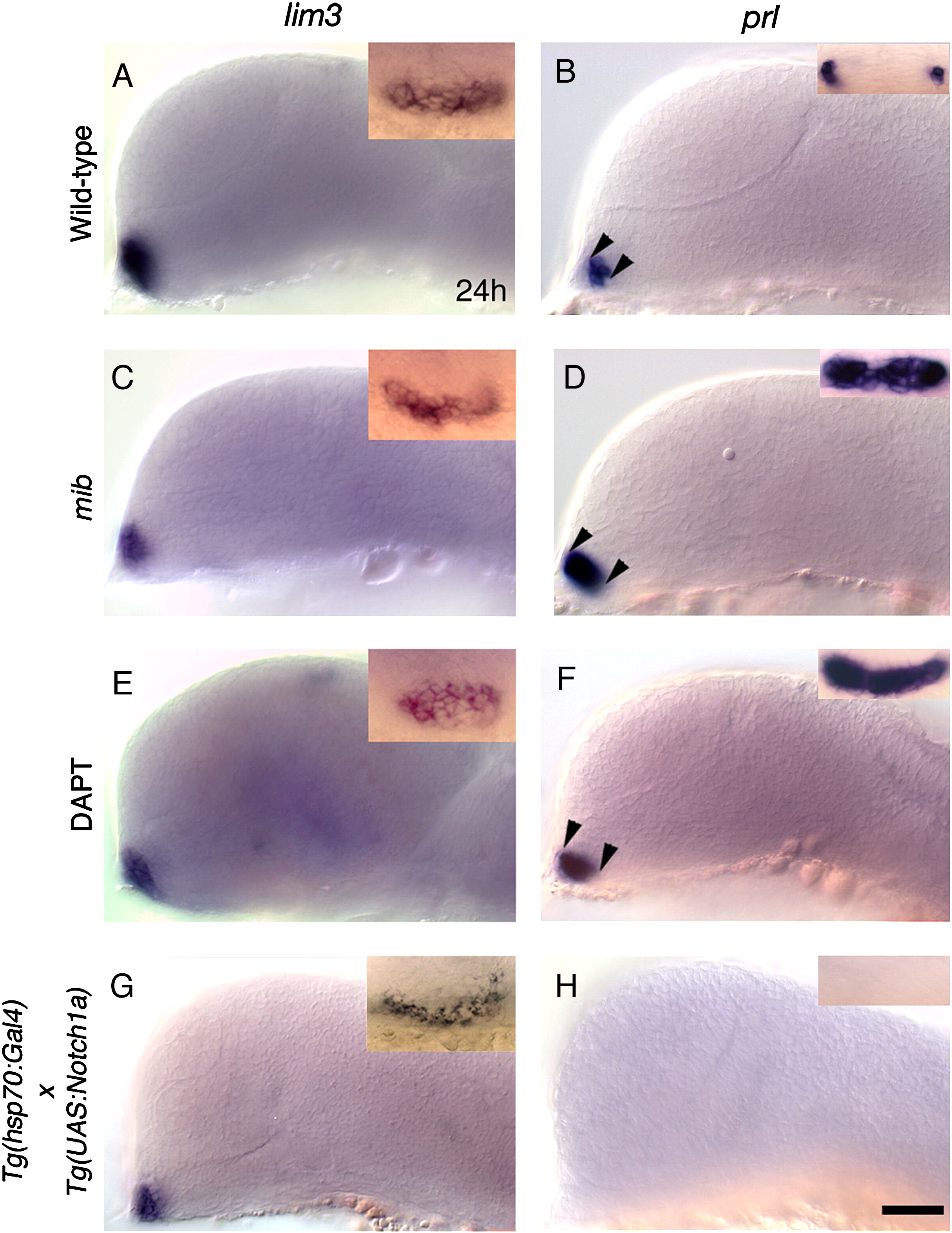

Fig. 3 Notch is necessary and sufficient to restrict lactotrope differentiation in the anterior pituitary placode. (A, B) Wild-type embryos labeled with lim3 (A, n = 85) and prl (B, n = 96). (B, inset) Bilateral cells in the anterior pituitary placode express prl. Gene expression in DMSO treated (n = 30), and hsp70:Gal4 heat-shocked (n = 30) control embryos was similar to wild-type embryos in A and B. (A, C, E, G) Pituitary placode size and lim3 expression in mib mutant (C, n = 39), in DAPT treated (E, n = 45), and in heat-shocked hsp70:Gal4 × UAS:notch1a (G, n = 22) transgenic embryos is similar to controls (A, B). (B, D, F) Loss of functional Notch signaling in mib mutant (D, inset, n = 37/37) and DAPT treated (F, inset, n = 32/40) embryos lead to expansion of prl in pituitary placode (arrowheads; D, F). (H) prl expression in the anterior pituitary placode is completely lost in hsp70:Gal4 x UAS:notch1a transgenic embryos (n = 48/48) following heat shock. (A–G) side views, anterior to the left, dorsal to the top; (A–G, inset) frontal views, dorsal to the top. All embryos Prim-5 (24 h) stage. Scale bar: 50 μm (A–H); Insets A, C, E, G: 40 μm; Insets B, D, F, H: 30 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 319(2), Dutta, S., Dietrich, J.E., Westerfield, M., and Varga, Z.M., Notch signaling regulates endocrine cell specification in the zebrafish anterior pituitary, 248-257, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
