Fig. 2
- ID
- ZDB-FIG-240605-70
- Publication
- Ye et al., 2022 - c-myb is involved in CML progression and is a therapeutic target in the zebrafish CML model
- Other Figures
- All Figure Page
- Back to All Figure Page

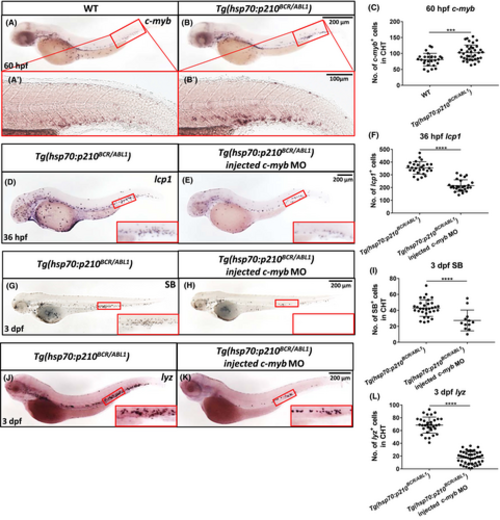

The impact of BCR/ABL1 on neutrophil regulation depends on c-myb. (A,B), (A′,B′) WISH showed an increase of c-myb expression in Tg(hsp70:p210BCR/ABL1) (B,B′) at 60 hpf compared with controls (A,A′). Red boxes showed enlarged details. (C) Quantification of numbers of 60 hpf c-myb+ cells in caudal hematopoietic tissue (CHT) (WT, n = 27; Tg(hsp70:p210BCR/ABL1), n = 37). (D,E) WISH showed a decrease of lcp1 expression in Tg(hsp70:p210BCR/ABL1) injected c-myb antisense oligonucleotide morpholino (MO) at 36 hpf. (F) Quantification of numbers of 36 hpf lcp1+ cells (Tg(hsp70:p210BCR/ABL1), n = 27; Tg(hsp70:p210BCR/ABL1) injected c-myb MO, n = 26). (G,H) SB staining showed decreased number of SB+ cells in Tg(hsp70:p210BCR/ABL1) injected c-myb MO at 3 dpf. Red boxes showed enlarged detail of SB+ cells in each group. (I) Quantification of numbers of 3 dpf SB+ cells in CHT (Tg(hsp70:p210BCR/ABL1), n = 32; Tg(hsp70:p210BCR/ABL1) injected c-myb MO, n = 12). (J,K) WISH showed a decrease of lyz expression in Tg(hsp70:p210BCR/ABL1) injected c-myb MO at 3 dpf. Red boxes showed enlarged detail of lyz+ cells in each group. (L) Quantification of numbers of 3 dpf lyz+ cells (Tg(hsp70:p210BCR/ABL1), n = 33; Tg(hsp70:p210BCR/ABL1) injected c-myb MO, n = 45). Scale bars, 200 μm (A, B, D, E, G, H, J, K) and 100 μm (A′,B′). |
