FIGURE

Figure 3.

ID
ZDB-FIG-210911-42
Publication
Partoens et al., 2021 - Modelling neurodevelopmental disorders and epilepsy caused by loss of function of kif2a in zebrafish
Other Figures
All Figure Page
Back to All Figure Page
Figure 3.

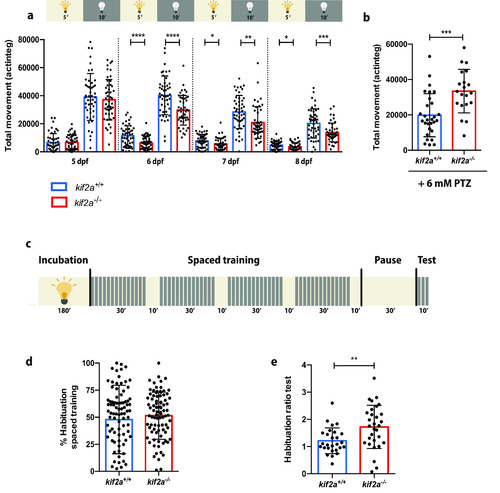

kif2a−/− larvae exhibit locomotor abnormalities, increased locomotor behavior to PTZ and habituation learning disabilities. a, Average total movement of kif2a+/+ and kif2a−/− larvae from 5 to 8 dpf expressed in actinteg units. Values are reported as the mean ± SD of four separate experiments. Significant values are noted as ****p ≤ 0.0001, ***p ≤ 0.001, **p ≤ 0.01, and *p ≤ 0.05. b, Average total movement of 5 dpf kif2a+/+ and kif2a−/− larvae after 6 mm PTZ immersion for 30 min. Values are reported as the mean ± SD of four separate experiments. Significant values are noted as ***p ≤ 0.001. c, The habituation learning assay performed on 6 dpf kif2a+/+ and kif2a−/− larvae was composed of different protocols: starting with a 3 h incubation period in the light (indicated in yellow), followed by a habituation training consisting of four periods with 120 DFs with a 15 s ISI (regions with gray and yellow stripes), alternated by 10 min of light, a period of 30 min pause in the light preceding the actual test, and a test consisting of 10 DFs with a 60 s ISI (region with gray and yellow stripes). d, Percentage habituation of kif2a+/+ and kif2a−/− larvae to DFs during the spaced training. Values are reported as the mean ± SD of three separate experiments. e, Habituation ratio of average movement of kif2a+/+ and kif2a−/− larvae to DFs during the test. Values are reported as the mean ± SD of three separate experiments. Significant values are noted as **p ≤ 0.01. No locomotor abnormalities and habituation learning disabilities were observed in kif2a−/− zebrafish larvae from +/– incrosses (Extended Data Fig. 3-1).

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Conditions:
Observed In:
Stage Range: Day 5 to Days 7-13

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ eNeuro
