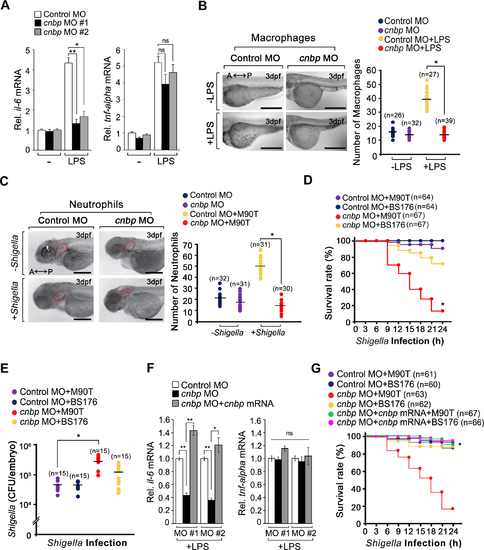

Fig. 8

Depletion of CNBP leads to an increased susceptibility to bacterial infection in vivo. (A) The mRNA levels of il-6, but not tnf-α, decreased in the cnbp morphants. Control and cnbp morpholino oligos (MOs) were injected into zebrafish embryos along with LPS (1 mg ml−1) at 24 hpf. Three hours after the infection, il-6 or tnf-α mRNA was measured by RT-qPCR analysis. *P < 0.01 and **P < 0.001 (Student's t-test). (B) Macrophages in cnbp-depleted zebrafish larvae fail to migrate to the inflammatory foci during LPS infection. To compare the infiltration of macrophages between control and cnbp morphants after LPS infection, larvae were collected at 3 h post-infection (hpi) and stained with 2.5 μg ml−1 Neutral Red (NR) solution. Migration of NR-stained macrophages was observed under a dissecting microscope. Images were captured and analyzed using a mono-camera and the NIS-Elements software, respectively. Scale bars, 200 μm, *P < 0.001 (Student's t-test). (C) Infiltration of neutrophils was defective in cnbp morphants during Shigella infection. The Shigella M90T was injected into the otic vesicle (circle) of the control and cnbp morphants at 3 dpf. The zebrafish larvae were fixed with 4% formaldehyde and permeabilized with ethanol for staining with 0.03% SB at 4 hpi. The migration of SB-stained neutrophils observed by a dissecting microscope was photographed and analyzed using NIS-Elements software. Scale bars, 500 μm. *P < 0.001 (Student's t-test). (D) Survival rates of zebrafish in control or cnbp morphants after Shigella M90T or BS176 infection. The larvae were injected intravenously with 1 × 103 CFU of Shigella at 72 hpf and incubated at 28°C for 24 h. The survival rates of zebrafish larvae were measured during 24 h after the bacteria infection. *P < 0.01 (Mantel-Cox log-rank test). (E) Bacterial burden in control and cnbp morphants after Shigella infection with 1× 103 CFU at 72 hpf and incubation for 24 h. *P < 0.001 (Student's t-test). (F and G) The delivery of wild-type cnbp mRNA to cnbp morphants rescued il-6 mRNA production and survival during infection. *P < 0.01 and **P < 0.001 (Student's t-test) in F or *P < 0.001 (Mantel-Cox log-rank test) in G. Data are representative of three independent experiments and are presented as mean ± s.d. in A and F.

Expression Data
Gene:
Fish:
Condition:
Knockdown Reagents:
Anatomical Term:
Stage: Prim-5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Conditions:
Knockdown Reagents:
Observed In:
Stage Range: Prim-5 to Day 4

Phenotype Detail
