Fig. 4

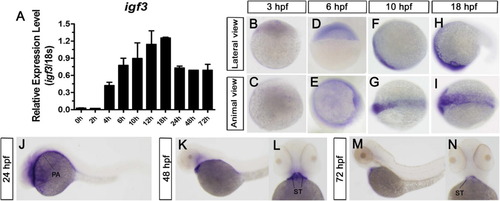

The expression of igf3 during early development of zebrafish. (A) Real-time PCR results showing the temporal expression of igf3 relative to a housekeeping gene (18s) in zebrafish embryos during the first 72 hpf; (B–N) Results of whole mount in situ hybridization showing the spatial expression of igf3 during embryogenesis. (B and C) 3 hpf (1 k-cell stage), lateral and animal view; (D and E) 6 hpf (shield stage), lateral and animal view; (F and G) 10 hpf (bud stage), lateral and animal view; (H and I) 18 hpf (18-somite stage), lateral and animal view; (J) 24 hpf (prim-5 stage), lateral view; (K and L) 48 hpf (long-pec stage), lateral and dorsal view. (M and N) 72 hpf (protruding-mouth stage), lateral and dorsal view. PA, pharyngeal arch region; ST, sternohyodieus (hypobranchial muscle).

Expression Data
Gene:
Fish:
Anatomical Terms:
Stage Range: 1-cell to Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 15(2), Li, J., Wu, P., Liu, Y., Wang, D., Cheng, C.H., Temporal and Spatial Expression of the four Igf Ligands and two Igf Type 1 Receptors in Zebrafish during Early Embryonic Development, 104-11, Copyright (2014) with permission from Elsevier. Full text @ Gene Expr. Patterns
