ZFIN ID: ZDB-FIG-140425-3
Raymond et al., 2014 - Patterning the cone mosaic array in zebrafish retina requires specification of ultraviolet-sensitive cones. PLoS One   9(1):e85325 Full text @ PLoS One
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Term:
Stage: Adult
PHENOTYPE:
Fish:
Observed In:
Stage: Adult

Fig. 3

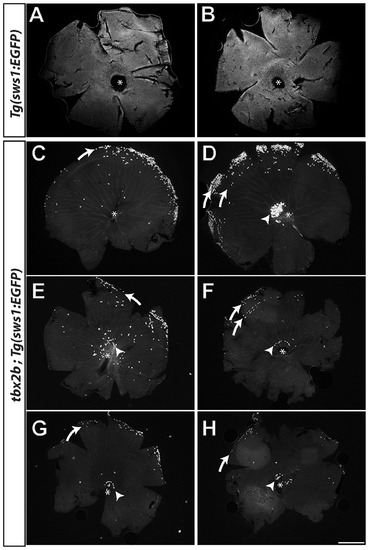

Variable number and distribution of UV cones in adult tbx2b mutants.

A, B) Flat-mounted retinas from sws1:EGFP wild-type fish; the optic disc is indicated by an asterisk; dorsal is up. C–H) Six examples of tbx2b; sws1:EGFP mutant retinas. Residual UV cones are typically at or near the dorsal margin (curved white arrows) and immediately dorsal to the optic disc (arrowhead). Scale bar: 500 μm (A–H).

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
EGFP kj9Tg standard conditions Adult UV sensitive photoreceptor cell IHC
tbx2bc144/c144; kj9Tg standard conditions Adult UV sensitive photoreceptor cell IHC
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
tbx2bc144/c144; kj9Tg standard conditions Adult retina has fewer parts of type UV sensitive photoreceptor cell, abnormal
Acknowledgments:
ZFIN wishes to thank the journal PLoS One for permission to reproduce figures from this article. Please note that this material may be protected by copyright. Full text @ PLoS One
