Fig. 2
- ID
- ZDB-FIG-130906-10
- Publication
- Weger et al., 2013 - Real-time in vivo monitoring of circadian E-box enhancer activity: A robust and sensitive zebrafish reporter line for developmental, chemical and neural biology of the circadian clock
- Other Figures
- All Figure Page
- Back to All Figure Page

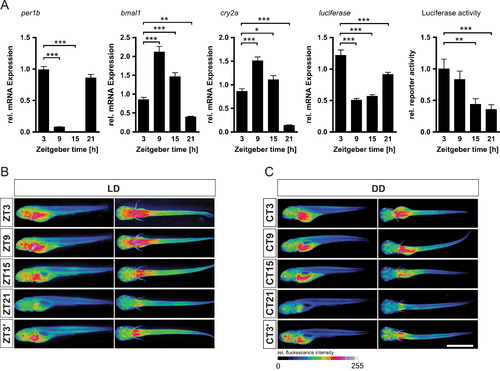

Spatiotemporal analysis of Tg(4xE-box:Luc) reporter activity in larvae. (A) mRNA expression levels as determined by RT-qPCR for the endogenous clock genes per1b, bmal1 and cry2a as well as for the luciferase reporter in 5 dpf Tg(4xE-box:Luc) larvae under LD. Shown are also the levels of bioluminescence of 5 dpf larvae (n=44) recorded at the time points with the plate reader corresponding to mRNA analysis. ((B) and (C)) Luciferase expression shows diurnal (B) and circadian (C) changes across all tissues of the larvae. Immunohistochemistry with an anti-luciferase antibody and an Alexa Fluor 488 labeled secondary antibody. Relative fluorescence intensity is shown color coded. Representative images of larvae sampled at 5 dpf at five different time points during LD (ZT3-ZT32 B) or DD (CT3-CT32 C) after a 4 day entrainment period. Scale bar, 1.0 mm. |
| Genes: | |
|---|---|
| Fish: | |
| Condition: | |
| Anatomical Term: | |
| Stage: | Day 5 |
Reprinted from Developmental Biology, 380(2), Weger, M., Weger, B.D., Diotel, N., Rastegar, S., Hirota, T., Kay, S.A., Strähle, U., and Dickmeis, T., Real-time in vivo monitoring of circadian E-box enhancer activity: A robust and sensitive zebrafish reporter line for developmental, chemical and neural biology of the circadian clock, 259-73, Copyright (2013) with permission from Elsevier. Full text @ Dev. Biol.
